How do you design ribs for injection molding parts?
The design of injection-molded parts presents engineers and designers with a variety of challenges. One of the key components in many plastic parts is ribs, which significantly contribute to the stability and functionality of the final product. They serve to increase structural i
The design of injection-molded parts presents engineers and designers with a variety of challenges. One of the key components in many plastic parts is ribs, which significantly contribute to the stability and functionality of the final product. They serve to increase structural integrity, reduce weight, and save material costs. In this blog post, you'll find comprehensive tips on the design and optimal layout of ribs in injection-molded parts, based on current best practices and technical insights.
Basics of Injection Molding
Injection molding is a widely used process for manufacturing plastic parts in high volumes. It is known for its precision and cost-effectiveness. In this process, molten plastic is injected under high pressure into a mold, where it cools and solidifies to form the desired shape. The design of the mold, including the integration of ribs, is crucial for the quality and functionality of the final product.
What is the function of ribs in injection-molded parts?
Ribs are thin, filled reinforcement structures integrated into injection-molded parts to enhance strength and stability. They help minimize warpage during cooling and ensure structural integrity without significantly increasing weight or material costs. They can also improve stiffness and serve as guide elements or mounting points.
Design Rules for Ribs
What is the correct sizing for ribs?
Proper sizing of ribs is essential to achieve the desired structural benefits without compromising part integrity. A common rule is that the rib height should not exceed three times its thickness to avoid warpage and stress. This prevents them from cooling too quickly and warping unevenly, which could lead to defects.
How do I avoid warpage and stress with ribs?
Warp-free design requires careful planning of rib position and geometry. Uniform distribution throughout the part reduces localized stresses and minimizes the risk of warpage. The thickness of the ribs should also taper gradually from base to tip to avoid stress cracks.
How do I choose the right rib shape?
The shape of the ribs significantly affects their stability and the behavior of the injection-molded part during cooling. Right-angled ribs are easy to machine but can lead to higher stress. Ribs with rounded corners or angled geometry distribute stress more evenly and reduce the risk of cracking. Trapezoidal ribs offer a good balance between strength and material savings.
Thickness and Height
The rib thickness should always remain below the maximum recommended height to avoid warpage and other mechanical issues. A standard thickness is about 1.5 to 2 mm, depending on material and application requirements. Excessive thickness can lead to longer cooling times and higher material consumption, while ribs that are too thin may lack the required strength.
Transitions and Radii
For transition radii, the guideline is that they should be 0.25 times the rib thickness if this is at least 0.4 mm. Transitions should be smoothly rounded to improve material flow. Additionally, rounding reduces notch effects and stress concentrations.
What is the correct rib width?
The rib width should be 0.5 times the wall thickness, with a maximum of 0.7 times. If too thick, they may lead to sink marks and shrinkage.
What is the correct spacing between ribs?
The minimum spacing between ribs should be twice the rib thickness. If placed too closely, air entrapment and poor mold filling may occur. For thick-walled parts, the spacing can be increased.
Material Selection and Its Influence on Ribs
The selection of the appropriate plastic material has a direct impact on rib design. Materials with higher stiffness and strength may require fewer or smaller ribs to achieve the same structural integrity. The material's thermal conductivity also affects cooling times and thus the risk of warpage.
When using fiber-reinforced plastics, additional considerations are necessary since the fibers significantly affect mechanical properties. These materials often require special rib geometries to optimize fiber alignment and maximize part strength.

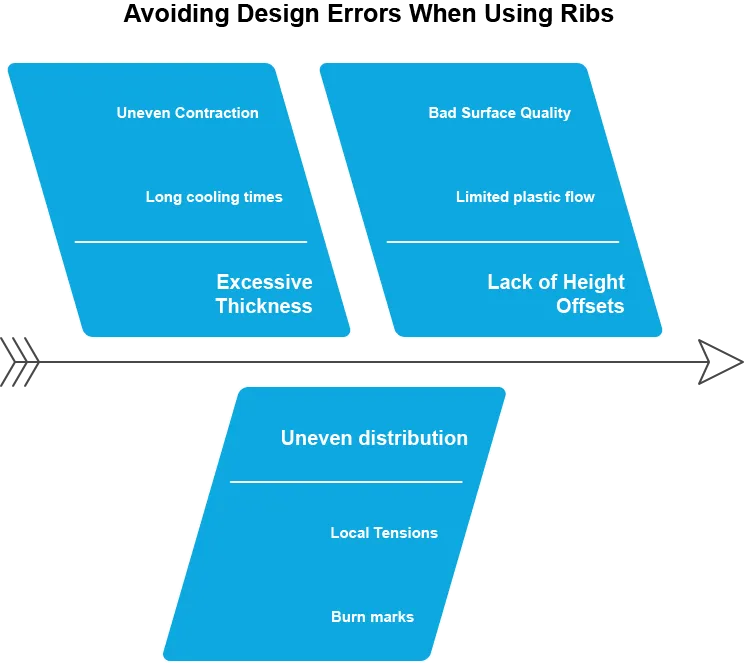

Avoiding Design Errors When Using Ribs
Excessive Thickness
Ribs that are too thick can lead to long cooling times and uneven shrinkage, which can cause warping and stress cracks. It's essential to size them according to the design rules mentioned above.
Uneven Distribution
Unevenly distributed ribs can create localized stresses and result in burn marks. They should be evenly distributed throughout the part to ensure uniform cooling and load distribution.
Lack of Height Offsets
Ribs should have a height offset from the main wall to avoid weld lines and inclusions. This facilitates the plastic flow and improves the surface quality of the part.
In the automotive industry, ribs are often used in interior and exterior components such as dashboards, panels, and housings. They contribute to weight reduction and improved structural strength without compromising aesthetics or functionality.
Electronics
In electronic device housings, ribs are essential to provide necessary stiffness and protection against mechanical stresses. They allow for compact design while offering required stability.
Consumer Goods
In the consumer goods sector, ribs help develop lightweight yet robust products. Examples include housings for household appliances, sports equipment, and toys where both weight and durability are critical.
Future Trends and Developments
The development of new materials and advanced manufacturing technologies continuously influences rib design in injection-molded parts. Lightweight plastics with enhanced mechanical properties enable more detailed and efficient rib structures. In addition, simulation tools for process optimization are becoming increasingly important, allowing designers to predict and optimize rib performance under various conditions.
Additive manufacturing (3D printing) is also evolving and offers new possibilities for complex structures that are difficult to implement with traditional methods. These technologies open up innovative design approaches that improve the performance and functionality of injection-molded parts.
Conclusion
Ribs play a crucial role in the design of injection-molded parts by improving structural integrity, strength, and functionality. Careful design that considers the correct dimensions, shapes, and materials is essential to achieve optimal results. By applying proven design rules and leveraging modern technologies, engineers and designers can develop robust, durable, and cost-efficient injection-molded parts. Continuous innovation in this field promises exciting advances and creative solutions for future challenges.
