Plastic injection molding has been a key component of modern manufacturing technology for decades. In particular, the two-component injection molding process, known as 2K injection molding, offers versatile possibilities for producing complex and functional components. This article covers how 2K injection molding works, its technical aspects, practical applications, and the advantages and challenges associated with it.
1. Basics of the 2K Injection Molding Process
2K injection molding is a specialized variant of multi-component injection molding in which two different plastic materials are permanently bonded together in a single manufacturing step.This process enables the integration of multiple components or colors into a single part, simplifying assembly processes and significantly expanding design possibilities.
2. How 2K Injection Molding Works

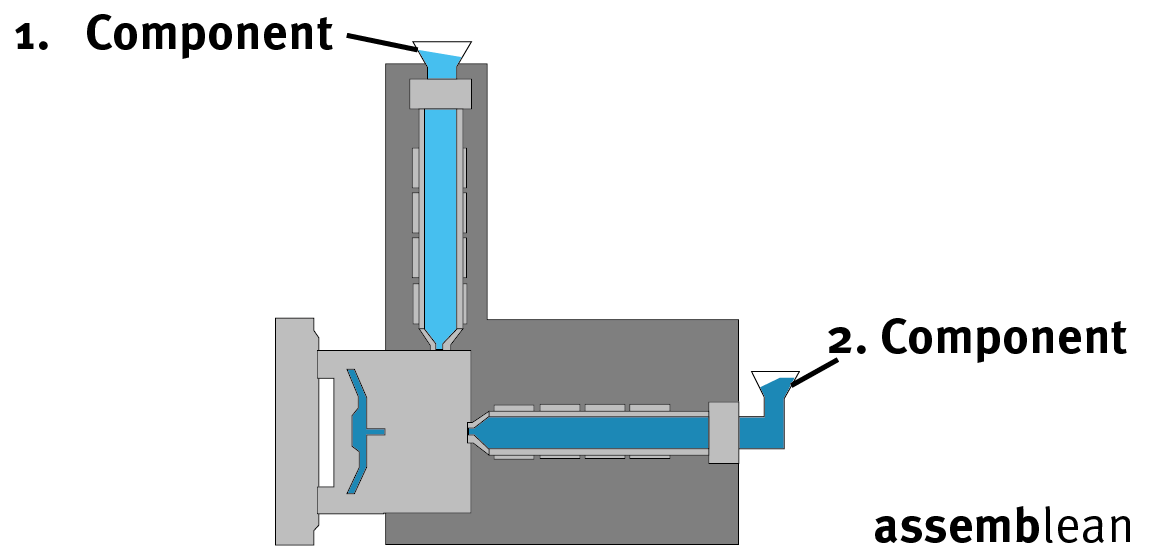

The 2K injection molding process consists of two consecutive injection molding steps. First, a so-called pre-mold is produced, which serves as the base for the final component.Next, a second plastic component or liquid silicone is injected over, into, and around the pre-mold. This process requires specialized injection molding machines and tools that can precisely control both molding steps.
Step-by-Step Process
3. Technical Details and Design Considerations
The successful implementation of the 2K injection molding process depends on several technical factors:- Material Compatibility
It is essential that the two materials used are physically, chemically, and thermally compatible. Materials such as TPU (thermoplastic polyurethane) and ABS (acrylonitrile butadiene styrene) form strong chemical bonds. For incompatible materials, mechanical interlocks, such as undercuts or injected connection structures, are required to ensure a permanent bond.
- Mold Design and Construction
The molds for 2K injection molding must be precisely designed to ensure uniform wall thicknesses and smooth transitions between components. The thickness of the overmolding material should not exceed that of the pre-mold to avoid disproportionate stress. - Temperature Control
The melting temperature of the second component must be lower than that of the pre-mold to prevent softening of the materials, especially when using materials like liquid silicone. This ensures the integrity and stability of the final component. - Advanced Processing Techniques
In addition to the basic process steps, there are advanced processing techniques that further optimize 2K injection molding:- Sandwich Injection Molding: This technique allows the integration of a second component inside the first component. A particularly interesting application is the injection of recycled material into the core of the part, which is then coated with a separate outer layer. This enhances sustainability and masks undesirable visual or olfactory effects.
- Co-Injection: In this process, both raw materials are injected into the mold simultaneously. The mold is designed so that the plastics only touch at specific points and partially merge. This allows the production of parts with firmly anchored yet flexible components, such as toys with movable eyes.
4. Practical Applications and Benefits
2K injection molding offers a wide range of applications across different industries:Improved Ergonomics and Functionality
One of the most common reasons for using 2K injection molding is to improve grip while maintaining physical strength. For example, handles on power tools or surgical instruments can be made more ergonomic through soft overmolding.Aesthetic Design and Branding
2K injection molding enables the production of multi-colored products or the integration of specific design features. A sports franchise could, for example, produce mouthguards in team colors, while a tractor manufacturer could design engine hoods in green and yellow.Reduction of Assembly Effort
By integrating multiple components in a single manufacturing step, separate assembly steps are eliminated. This not only saves time and costs but also increases production speed and final product quality.Sustainability
Special processing techniques such as sandwich injection molding allow the incorporation of recycled material into the core of a component, supporting sustainability and masking negative visual or olfactory effects.5. Challenges and Solutions

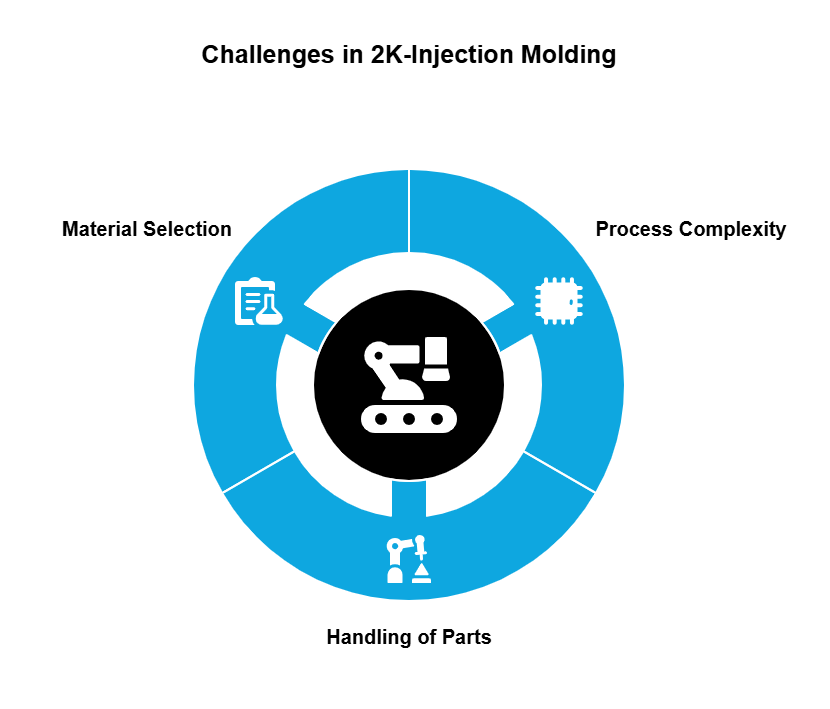

Despite its many advantages, 2K injection molding also presents challenges:- Process Complexity
The 2K injection molding process is more complex than conventional injection molding, leading to higher tooling costs. However, these costs are often quickly offset by the elimination of assembly processes and improved product quality. - Handling of Parts
Especially when processing soft materials like silicone, handling the pre-mold is critical to avoiding deformations. The use of robotic systems or specialized molding techniques can help mitigate this issue. - Material Selection
Careful selection of compatible materials is essential for adhesion and functionality of the final product. A thorough material evaluation and selection during the design process is crucial to achieving the desired properties. Our material overview can help with your choice.
6. Future Trends and Outlook
With advancements in manufacturing technology and increasing automation, the potential for 2K injection molding will continue to grow. The use of artificial intelligence for process control and material selection promises even more precise and efficient production.Additionally, sustainability will be a key driver, with innovative recycling methods in injection molding playing an increasingly important role.
Conclusion
2K injection molding is a powerful process that offers numerous benefits by integrating multiple plastic components in a single manufacturing step. From improved ergonomic properties to aesthetic design options and cost savings, it unlocks a range of possibilities in plastic processing.Despite challenges, particularly in material compatibility and part handling, the advantages outweigh the drawbacks, especially through the elimination of assembly processes and enhanced product quality. Future developments in manufacturing technology will further improve the efficiency and application range of 2K injection molding, setting new standards in plastic production.
